ZN-Lite II Update

I’ve had these paddles for about a year now but I haven’t used them much. Here is a link to my original review: https://kk4z.com/2021/11/24/n3zn-zn-lite-ii/. The reason is rather complex. they are small but because of their design, they can’t be held in the hand like some other paddles. If you put them on a table with the included Lexan base, they are so light, you have to use both hands to operate them. To me, it was a conundrum. These are very well-built, precision paddles and as smooth as any well-made paddle out there. My original thought was to use them for POTA. I was a little discouraged with their functionality, and even offered to sell them at one point — but I didn’t.

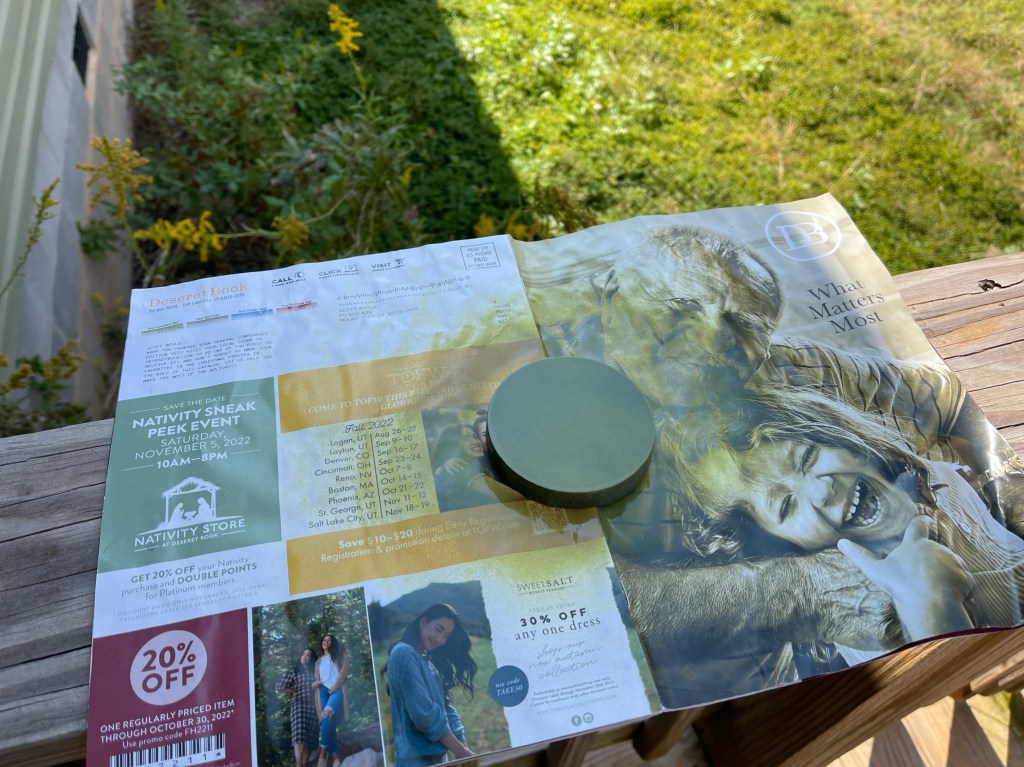

Here lately, I have been pairing my paddles with my various radios. My Begali Signature with my IC-7610, Begali Traveler Light with my IC-7300, Begali Adventure with my IC-705, and my N0SA SOTA paddle with my TX-500. I have a Penntek TR-45L on order. It is a CW-only radio that has a nice retro look. I thought these paddles would be a great match for this radio. What I want for this radio is a set of paddles that can be operated with one hand. The TR-45L is a tabletop radio https://www.wa3rnc.com/store/penntek-tr-45l-qrp-transceiver. I envision its use at a park during a POTA activation. I decided what my ZN-Lite II paddles needed was a heavier base. I ordered from Amazon a 3″ diameter, 1/2″ thick piece of steel.

I drilled a hole to mount the paddle and 4 smaller holes to mount the rubber feet. The paddle hole is countersunk on the bottom so the screw head is below (or above) the surface of the base. That way it can be used without the feet.

The holes for the feet were drilled and tapped for 8-32 thread. I had to drill the hole all the way through because I didn’t have a bottom tap. Without a bottom tap, there would not have been enough threads in the hole if I didn’t drill all the way through. When I do these projects, I basically use hand tools and in this case, I used a cheap drill press I bought from Home Depot.

Here is a view of the base from the bottom.

Because the paddle mounting hole is offset from the center, I can mount the paddle two ways.

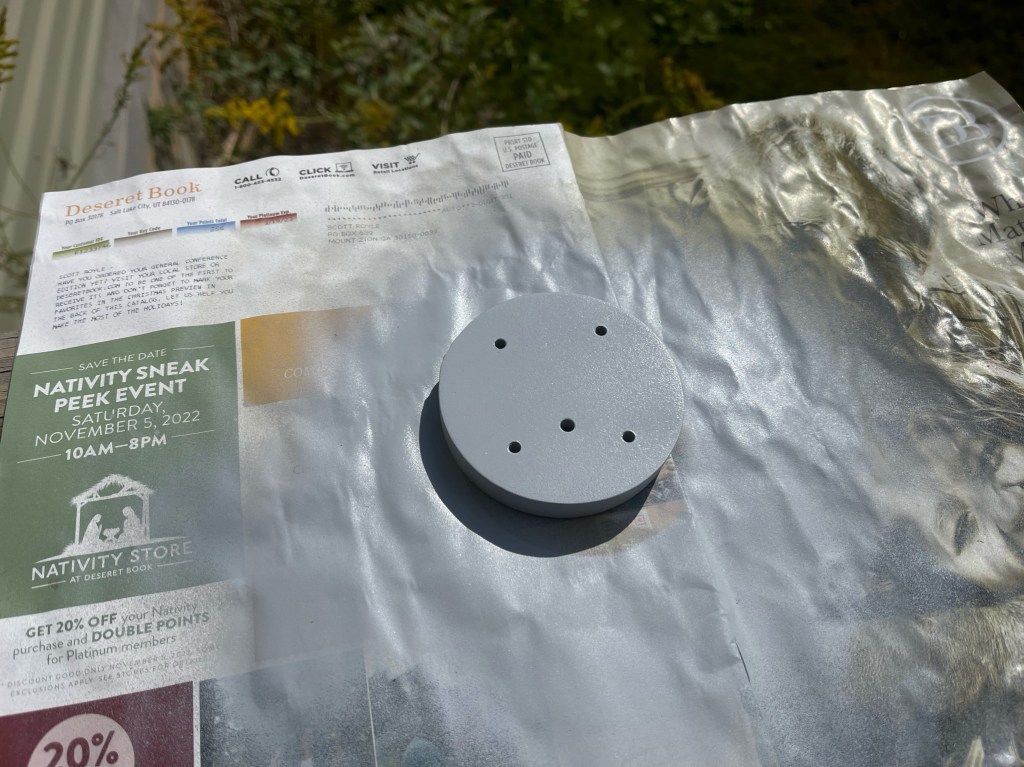

In the bottom picture, the base offers some protection for the paddles. Even though I can loosen the screw to move the paddles to where they face outboard, I found that I prefer the paddles facing inboard like the bottom picture. I feel it offers a little more stability. This mod allows me to use the paddles one-handed on most surfaces. The last step was painting. I put a coat of gray primer, followed by a coat of Nickel Metallic (Rustoleum), and finished off with a clear coat.

I didn’t go overboard with the painting. The main goal was to give the metal a little protection from corrosion. Basically one coat of each with a 15-30 minute wait time between coats. I chose the color because I thought it would complement the paddles. I think it did.

There you have it, a nice set of paddles ready for my next adventure. 73’s Scott

IC-705 Stand

I bit the bullet and ordered an Icom IC-705. It really was a no-brainer for me as I already have several Icom radios. I have had other brands, but I keep going back to Icom. Anyhow, once I got the radio I needed a stand to keep it tilted at the right angle. There isn’t a whole lot out there. The commercial stands are rather pricey, and the 3D printed versions are nice but my son’s 3D printer is down for maintenance and upgrades.

I had a $30 gift card from Tractor Supply I received for Christmas, so off I popped. The stand is made from 1/16″ thick, 1″ x 1″ angle aluminum cut to 2″ long. I got a 48″ piece for 10 bucks. While there I picked up some M4 x 10 machine screws and some M4 washers (about another 2 bucks. Icom gives you the dimensions for all the mount holes in their manual.

I cut it to length, drilled the holes and then did a nice deburr on it. Needle files and a Dremel work great here. I then lightly sanded the whole piece and cleaned it with non-chlorinated brake cleaner (great stuff and cheap at any auto parts store).

The next step was a coat of primer, in this case zinc chromate, a throw back to my Army Aviation days, followed by a coat of high temperature flat black. It’s what I had on hand.

Finally, I added a clear coat and let it sit over night. Here is the final product installed on the IC-705.

It was a fun little project and only took a couple of hours time. The 705 sits back on that angled section at the back of the radio — perfect. I found a padded telephoto lens case that should fit it just fine for about 20 bucks. I’ve taken Icom radios to the field before and they hold up well. I’ve made some CW contacts from home and the radio works as well as my other Icoms. I made out to California and up into NY. I am looking forward to getting this in the field.

N3ZN ZN-Lite II

I like paddles — a lot. Sometimes I feel I am drawn to them like a moth to a flame. You can only use one at a time but isn’t variety the spice of life? To be sure, I’m no speed demon at the paddles nor am I 100% accurate, but I am passionate about CW, and surely, that counts for something. Pictured here is one of Tony’s, N3ZN’s creations. It is his ZN-Lite II and while it is not the lightest paddle on the market, it is near the top and it is a well built machine. By itself, it tips the scales at about 4.5 ounces with the attached cable. Add the plastic base and the weight is still less than 6 ounces.

The paddle itself is well built and the action is smooth. The adjustments are generous and precise. Once set up the way you like it, I found it is pretty easy to switch over from another paddle. In other words, going from your desk paddles to these is pretty easy.

On the bottom of the paddles, there is an 8-32 screw hole. This can be used to attach the paddles to the base of your choosing such as a flight deck.

The ZN-Lite II also comes with a plastic base. Here is how I like to attach it.

In use. While I am writing this I am using the paddles to make POTA contacts. Because the paddle is light, it takes two hands to use it. One to hold the paddle and one to operate it. For portable operation, I found the best way to use them is either attached to a flight deck or on a flat surface such as a picnic table. Trying to grab it fist style interferes with the paddle levers and while you can hold it by its sides, well, it just wasn’t for me. Here is a picture of how I use these paddles.

In general, I found the paddles fun to use. When your doing something for fun, fun counts. I appreciate the precision and quality that went into these paddles. They are durable enough to be knocked a around bit in a pack (don’t run them over with your car). Where do they fit? I think these paddles are great for portable operations. In my way of thinking they would work for POTA activations or even Field Day. They would excel for those who wish to travel light and fast. An Example might be POTA RADAR (Rapid Deployment Amateur Radio). I think for SOTA there are better options out there as operators are often holding their paddles fist style in their hands. However, these may work well if someone devised a leg strap for them. Here is a YouTube video I did for these paddles.

Overall, I like the paddles, they are currently sitting on my desk and I am making contacts with them. They have a good feel, and enough of a fun factor to keep them in the rotation (I never thought I would say that). I have exchanged a few emails with Tony and he has always been responsive and helpful. If you want to find out more about Tony’s paddles, here’s a link: https://www.n3znkeys.com/
