IC-705 Stand

I bit the bullet and ordered an Icom IC-705. It really was a no-brainer for me as I already have several Icom radios. I have had other brands, but I keep going back to Icom. Anyhow, once I got the radio I needed a stand to keep it tilted at the right angle. There isn’t a whole lot out there. The commercial stands are rather pricey, and the 3D printed versions are nice but my son’s 3D printer is down for maintenance and upgrades.

I had a $30 gift card from Tractor Supply I received for Christmas, so off I popped. The stand is made from 1/16″ thick, 1″ x 1″ angle aluminum cut to 2″ long. I got a 48″ piece for 10 bucks. While there I picked up some M4 x 10 machine screws and some M4 washers (about another 2 bucks. Icom gives you the dimensions for all the mount holes in their manual.

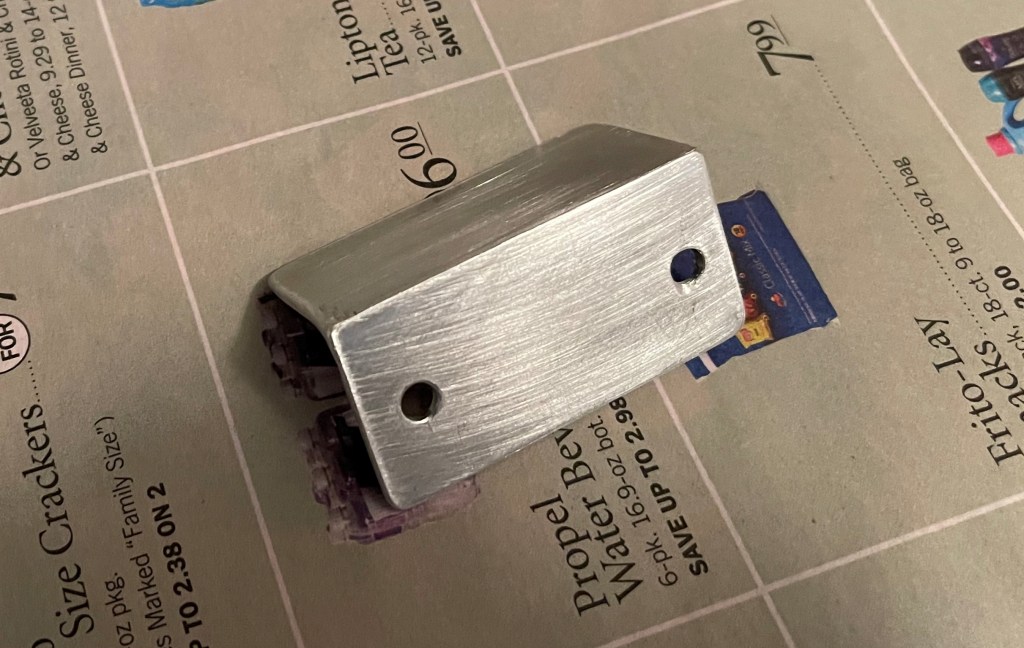

I cut it to length, drilled the holes and then did a nice deburr on it. Needle files and a Dremel work great here. I then lightly sanded the whole piece and cleaned it with non-chlorinated brake cleaner (great stuff and cheap at any auto parts store).

The next step was a coat of primer, in this case zinc chromate, a throw back to my Army Aviation days, followed by a coat of high temperature flat black. It’s what I had on hand.

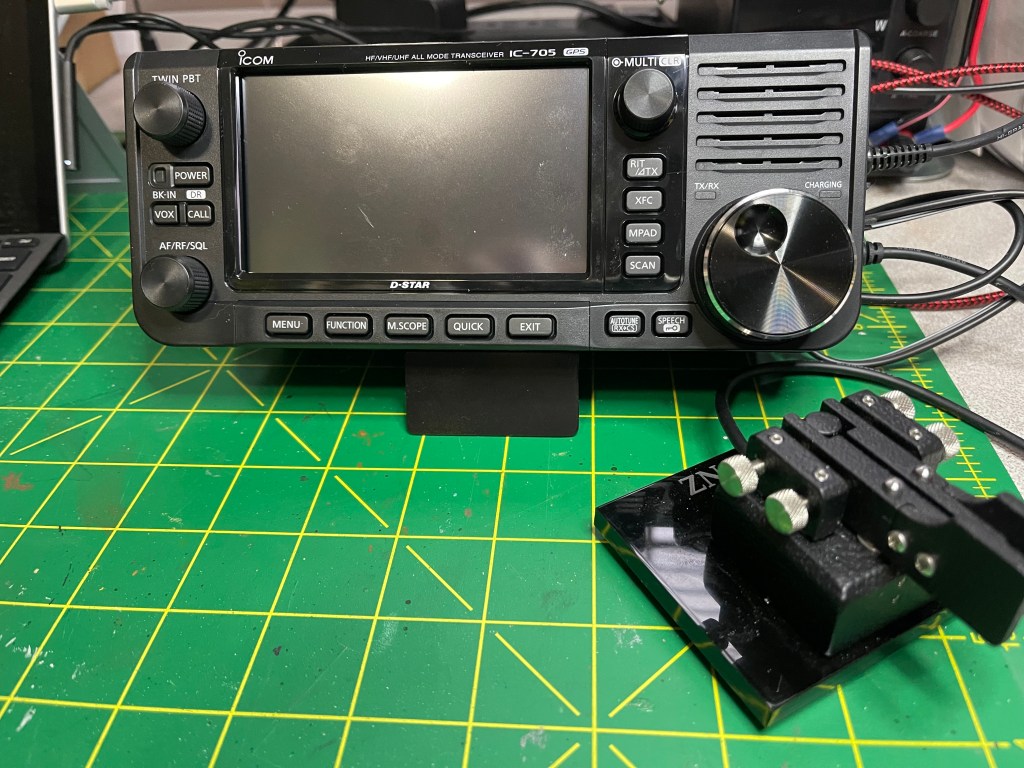

Finally, I added a clear coat and let it sit over night. Here is the final product installed on the IC-705.

It was a fun little project and only took a couple of hours time. The 705 sits back on that angled section at the back of the radio — perfect. I found a padded telephoto lens case that should fit it just fine for about 20 bucks. I’ve taken Icom radios to the field before and they hold up well. I’ve made some CW contacts from home and the radio works as well as my other Icoms. I made out to California and up into NY. I am looking forward to getting this in the field.
