Part of my amateur radio adventures for 2024 is to become a better CW operator. What I mean by that is I want to do more than than POTA/SOTA/Contest exchanges. When I first started out 28 years ago, that’s what I did, called CQ and had a conversation. In addition to becoming more conversational, I wanted to try my hand at straight or mechanical keys. I recently ordered a sideswiper and a bug but they won’t be here fro another 2-3 weeks. I also thought about the money I had invested in paddles.
This thought process took me down to thinking about how to convert iambic paddles into side swipers. All it takes is shorting the dit and dah paddles together and setting your radio to a straight key. I wanted to make this easy. I wanted to be able to use all of my paddles on all of my radios as an iambic paddle or a sideswiper. Since this is my first journey into straight or mechanical keys, I wanted to be able to easily convert back and forth.
I made a short cable that goes between the paddles and the radio. It’s a simple operation. Starting out with plug nomenclature.
The tip is the dits and the ring is the dahs. The sleeve is the common. I had male and femlae 1/8″ stereo cables in my parts bin so I took my multimeter and coded the wires to the plugs. Basically you tie the common to the common and all the dit and dah wires together.
Twist them together, solder the joints, a little heat shrink and viola! Cootie cable. It weighs 0.5 ounces and will work with all of my radios. Now I can swith from Iambic to sideswiper in under a half a minute and use all of my paddles. See the included video that shows how it works. 73 – Scott
I feel a shift in the winds. Maybe it’s time to chart a new course. I feel if I continue on the current heading, I will end up in the doldrums. Not a good place. Parks on the Air (POTA) using CW has become stale. There is more to CW than a contest-like exchange. I have also noticed that the pile-ups in POTA have become a little more unruly. When this happens, it can extend the pileup time to double or triple what it used to be. CW pileups work well when each station sends their call once and not two or three times. Couple multiple calls with tail-ending, and a pileup could go on from close to a minute. These multiple calls often QRM the activator so no one can hear him, causing him to repeat the call they have chosen. While there aren’t any fast rules, there is an art to working a pileup from either end and, adapting to the ebb and flow of the pileup is key.
So where am I today? I think I need to try something different, not real different, just not what I’m doing now. After 1,000+ POTA CW contacts, I think I got it. Activations are still a bit of a challenge, but, it’s still just an exchange. I am currently enrolled in a CWI course to help break out of my stagnation. I want to become more conversational with CW, much like I was years ago. But insanity is defined as doing the same thing over and over again expecting a different result. This means I have to do something different than POTA, or SOTA for that matter.
My first step was to join the Straight Key Century Club (SKCC). SKCC does not allow any electronic means of sending CW. They allow 3 types of keys: straight key, sideswiper, and a bug. Yep, it takes a little more skill to run one of those babies. Twenty-eight plus years ago when I was a Tech+ I used Iambic Paddles and have used them since. I have another challenge, learn how to run a mechanical key. Couple that with learning to become more conversational should keep me busy for a while. I am also hoping that jumping backwards over the technological barrier, may be a place where things are a little less hectic.
I am looking at several different mechanical keys and when I get one (or more) they will show up here on the blog. Learning to use a mechanical key will be like learning a new musical instrument — how fun! I will still do POTA and SOTA, but I plan on opening new avenues to adventure. Hope to hear you out there. 73-Scott
This morning I started waxing philsophically about kits and kitting. Some folks prefer to build a separate kit for each radio or each adventure. That can be a fun past time itself. I have tried that and it doesn’t work well for me (YMMV your milage may vary). When I do an activation or for that matter when I am hunting from home, I like to be familiar with my equipment. I like to know what it can and can’t do. One negative about multiple kits is you don’t put your hands on them as much which means they don’t get inspected or checked for damage, dead batteries etc. as much. I’ve seen many times where someone brought one of these kits to the field and something was missing, broken or dead, and they couldn’t get on the air.
This probably goes back to my Army days. We were issued one set of gear and that’s what we used. You knew how every thing worked and your kit was inspected frequently . A good example is my pocket knife of choice. While in the Army, I always carried a Swiss Army knife (SAK). It was used daily for a multitude of tasks. I developed a close relationship with SAKs. Forward to today, even though I can afford fancier knives and I have a few, my Every Day Carry (EDC) is still mostly a SAK. Why? Because I know the knife. I know the steel, how they are built and how to various blades work. For a while I was a UH-60A Blackhawk Crew-chief and the SAK was routinely used to work on the aircraft. Today, a SAK Small Tinker resides in my pocket. I have carried SAKs for over 50 years.
Back to radio stuff, I feel the same way. Even though I have quite a few antennas, I stick to a few that really work for me. I like going on an activation, knowing how my gear is going to work. Today, I was musing that I had my KX2 in its bag that came with the radio. It’s a nice bag but it’s a little tight fitting in my back pack. I decided to put some of the gear in a separate smaller bag. I have a 3D printed face cover and BNC connector cover to protect the radio bits so I can place the radio in my bag by itself. I also thought that my little QRP radios (KX2, IC-705, and QMX) use much of the same gear so I made one bag that all 3 radios can use. Then, when I go an activation, I can just swap out the radio and not worry about leaving something behind. Here is my new radio bag and list. For the rest of the pack contents see my blog post AAR on Bald Mountain: https://kk4z.com/2023/11/23/aar-bald-mountain/
The bag is a Condor Belt pouch. Nothin fancy, but sturdy enough and mashable enough to fit nicely in my backpack. Both my IC-705 and KX2 have a Begali Adventure mount and the Adventure paddle can be hand held. One thing not shown is an anti-slip pad that I use when operating from inside the truck. Here is the rest of the kit: 3’ RG-316 jumper 15” RG-316 with choke Throw line and weight Extra Bank Line Begali Adventure Paddle 28.5 Random Wire Antenna with 17’ Counterpoise Wire to BNC Adapter BNC to SO-239 adapter BNC to BNC adapter 3’ 3.5 mm Stereo Cable Earbuds Power Cable for there IC-705 Power Cable for the KX2 and QMX
My backpack stays packed and ready to go complete with a radio. Because it gets used often, I do not worry if the gear is ready, I just grab and go. Part of my Army training that has stuck with me, is I go through my gear when I come back from the field and get it ready for next time. As I said earlier, I plan on doing a one day activation a week along with one weekend activation a month. 72 — Scott
It’s that time of year again. Shopping, baking, cooking, parties, more shopping, and more parties. It’s a time for hustle and bustle, shaking and moving, busting a gut, or getting a gut. “It’s the most wonderful time of the year” so sings Andy Williams. Bah! Humbug! with all this Christmas retail extravaganza. The holiday season used to begin after Thanksgiving (now called Black Friday), but has since moved up in front of Halloween.
But I digress. Towards the end of the year is a time for me to reflect on the thrills of victory and the agonies of defeat. I’ve had some of both. One big thrill was I got to retire for the second and last time. It seems I am busier now then when I was working a job. It’s a good kind of busy though. One agony, was I let CW slip a bit. When band conditions were poor, I switched to FT8 for my POTA activations. I made a boatload of contacts all over the world and finished 5 Kilo’s. However, that did not help my desire to become more proficient with CW. Back in the 90s as a Tech+, CW was the gateway into the world of HF. My first DX contacts were HF CW. Studying CW back in the day was tedious. I had a couple of ARRL cassette tapes that I played over and over. It was enough to get me up to 13 wpm and my Advanced ticket (KM5AV).
CW worked well for me at the time. I worked second shift and with my “shack” in our bedroom, using headphones, I was able to log a few contacts each night while I wound down from the evening’s work while the wife slept. I got pretty good eventually getting up to about 18 wpm. Then work, kids, school, new jobs, etc., put CW on the back burner. It wasn’t until a couple of years ago that I started my journey back.
As I said earlier, I allowed myself to drift from CW. That is solely my fault. I only gave myself a general direction to proceed and no real standards to gauge my progress. When I started back, I was around 16 wpm and very shaky. I did manage to get myself up to around 20-22 wpm doing POTA hunting/activating. Hence my downfall. I can do an exchange at 20+ wpm but that’s about all. I trained myself to do an exchange. Where I want to be is to be able to engage in a CW QSO. To converse using CW. And I want to get my speed up around 28 wpm.
Bringing this back around, here I sit at the end of one year and the beginning of the next. This is usually a time for reflection on where I have been and where I am going. The tradition, is to make New Year’s Resolutions with the hope of succeeding in making them come true. I try to keep mine realistic and few. Next year, I will have two. The first will be to become more proficient with CW. With some personal hesitation I signed up for a class with CW Innovations https://cwinnovations.net/. My first experience with them was a 30-45 min. One-on-one interview with the instructors. It was a good experience, we talked about what I was trying to accomplish and we touched on how that was going to happen. One thing they stressed was everyone, regardless of position or skill stayed on the same level (peer-to-peer). The other thing I like was that we would get code-buddies. Someone to practice with, on the air. I always say that if you want to get better get on the air. With a code buddy, you’re working with someone in the same boat as you, someone you know on the other end — I like it. My class starts the middle of January. The other thing I am going to do is use CW as much as possible. That means using CW for hunting and activations. I may still do some digital, but nowhere near what I did the past year.
The second resolution is I am going to try to up my game when it comes to my blog. I am going to push myself to do better with the written content, try to be a bit more polished, and provide more breath when it comes to subject matter. I also plan on doing better with the videos. I am going to spend more time editing them. I recently purchased a MacBook Pro to help me. One thing that was very annoying was getting content from my iPhone and iPad in the field into my Windows machine. The aggravation would drive creativity right out of me. Now, as soon as I take a picture on my iPhone, Boom! It’s right here on there Mac ready to use.
There you have it. Let’s see how I do. I hope everyone has a very Merry Christmas or a Happy Holiday Season and a Happy New Year. I hope you all will take some time and give yourself a meaningful resolution to work on next year. 73 de Scott
My training from the military compels me to perform an after-action report of sorts. I have found it beneficial to review an adventure as quickly as possible while the triumphs and foibles are still fresh in memory. This becomes more important as we age. Today (Thursday) is a few days after my SOTA activation on Bald Mountain. In general, things went well even though the weather was not as nice as was expected. The climb was as expected, I had to huff and puff a bit which at my age was expected. Two things that came to mind were: 1) the pack could be a little lighter (it was 15 pounds with water and my Goretex jacket) and my hands were cold enough to hinder my CW sending. For my hands, I bought a pair of warm gloves that can expose the fingertips of my thumb and index finger. Because I was warmed up from the hike, the Goretex jacket was enough to keep me warm.
I decided to lighten my load a little bit. When climbing, a lighter is better. Here is a list of my new slimmed-down version of my SOTA pack. I got the pack down to 10 lbs without water or a jacket. I probably saved about 2 pounds, but hey! two pounds is two pounds.
Starting with my person, this is what I carry: Wallet – minimalist Bic Mini-lighter Fischer Space Bullet Pen Swiss Army Knife Hiker iPhone Benchmade Bugout Knife Notebook 3×5 Dogtag with emergency contact info on a neck chain Olight i1r2eos flashlight on the chain with the dog tag
The Bugout rides in the same pouch as my iPhone in its own pocket. The pack I use is a Camelbak Military HAWG. It’s the old style. I’ve had it for quite a while and when I need a smallish pack, it’s the one I grab. The orange strip is highly reflective.
Attached to the left shoulder strap of the pack is a Garmin InReach Messenger. Some of the places I activate have little or no cell service so I use the Garmin to spot myself and keep the wife updated.
E&E Pouch In the Army, we often made Escape and Evasion pouches. A small pouch with just enough stuff to get by. This one fits in a 6 x 9″ Alocsak Pouch and weighs 10oz. Ferro Rod with carbide striker Magnesium Rod 2 – 3/8 by 8″ Sisal Rope Tropical matches (from MRE) Tinder Lighter Pine iFAK Whistle Compass Space Blanket Signal Mirror 2 – Bic Lighters
The sisal rope is great for fire starting. You take it apart and it makes a nice nest for your fire.
Considering my whereabouts will be generally known, I do have a preference for fire and signaling. Most likely, any survival situation will be short-term, and I want to be found.
The Elecraft Bag This is the bulk of my radio gear. The Elecraft bag that came with my radio does a great job of keeping things organized. KX2 with a 3D printed cover Begali KX2 Adventure Paddle adapter 28.5′ Random Wire Antenna 17′ Counterpoise 30′ Bank Line 12 VDC power cable with Anderson Power Pole connector N0SA SOTA Paddles (swap with Begali Adventure Duo) 15′ RG-316 with choke (Chameleon) Skull Candy earbuds 8 oz Arbor weight with line
The rest of the items are dispersed within the pack 1 Liter Canteen with Cup and Spoon HeadlampSeat Cushion Contractor Trash Bag Knee Board Rite-In-The-Rain 4×6 Notepad 2 Mechanical Pencils Spool of Bank Line 2 Tent Stake Chameleon 40-meter OCF Dipole
Finally, there are some seasonal/ad hoc items such as gloves, jackets, food, and localized maps. I have plenty of room in the pack to make adjustments for conditions.
My pack contents will probably evolve over time as I use it. Right now I think there is a good balance in the pack between fun and safety. Some of the places I go are pretty remote. I always tell my wife where I am going and a general itinerary. You should do the same.
How did the KX2 do? This was the maiden voyage of the KX2. Right off the bat, I got to use it in some trying conditions. The weather was deteriorating as I walked into a cloud at the summit. It was windy and I wasn’t really sure what the weather was going to do. I figured I had enough time to make a quick activation and get down off of the mountain before the rains came. I climbed until I got well within the activation zone and set up. I strung the OCF dipole about 10 feet up and set my station right below it using the same tree as a backrest. I was going to use a Flight Deck but I didn’t want to fiddle with so I set the radio on top of the pack. Because the radio is self-contained all I had to do was plug in the antenna, paddles, and earbuds, and I was in business. I made 19 contacts logging on my notepad resting on my thigh. What helped to make the activation a success was the ease with which I got the radio working. Bing-Bam-Boom and I was on the air. As quick as I set it up, I took it down. The KX2 made it easy. I made it back to the truck to beat the drizzle. Since the activation, I added the kneeboard shown. I set it up at home and it should be easier to use than the one I had. I am still learning my way around the radio, but it is indeed going to be my main SOTA radio. Until next time 73 –de Scott
It’s official, I am retired. Fifty-three years in the making. Being on the north side of 66 does not mean you are wheelchair-bound. Maybe a little slower, but with patience and skill almost anything can be done. One of my first acts as KK4Z (ret.) was to do a SOTA activation. I chose Bald Mountain, a 10-pointer in northwest Georgia.
One of the reasons I chose a 10-pointer is I wish to get involved with a group called Southern Appalachian Summit QRPers or SASQ (SASQuatches). The group combines SOTA with a moderate level of Bushcraft. What’s not to like. There are skill-based membership requirements and one is a 10 pt SOTA activation within the past year. I wanted to get my 10-pointer in before the Park Service closes the roads to the summits during the winter.
I was originally planning on Tuesday for the trip, but the weather was going to be harsh that day. Lots of wind and rain. This is what I call the first winter storm of the season. Between the wind and the rain, it usually finishes knocking all the leaves off of the tree. So, I backed the trip up to Monday and checked the weather (Wx) – all systems go. Preflight check of the Wx 0600 hrs Monday showed VFR (good). The 10-point mountains are at least a 3-hour drive for me. Two hours on highway/improved roads and one hour on unimproved/gravel roads. That last hour covers approx. 20 miles. Along the way, I was confronted by a 6-8 pt deer who thought he was up to the challenge by a 5,000 lb Ram truck. After a few snorts, he thought better of it and scampered into the wood. Shortly after this, I heard Mussorgsky’s Night on Bald Mountain, an omen I didn’t recognize at the time. When I reached the parking lot below the summit, things weren’t so VFR. I checked the Wx again and now it showed rain on the way. The sky had closed in and the summit was in a cloud. I figured I had just enough time to reach the summit, make the required contacts, and retreat without getting too wet. When I started the trek, it was 60 degrees. By the time I reached the activation zone, the temps dropped, and the wind picked up. When I got back to the truck the thermometer registered 50 degrees. I estimated that the wind chill put temps in the low 40’s to high 30’s. Whenever I venture out, I always bring an extra layer, in this case, a Gore-Tex jacket. I forgot gloves and my CW suffered for it.
I climbed just high enough to get safely into the activation zone. My setup was quick and simple. I used a Chameleon 40-meter OCF QRP dipole. I like OCF dipoles. They do not have to get very high off the ground (10-12 feet is enough) and they are good performers. I prefer them over EFHWs. I sit on a cushion on the ground, so I use the supporting tree as a backrest. Coax is 15’ of RG-316 with a choke on one end. The radio was my new Elecraft KX2. I waited quite a while to get the radio. I did set it up at home and made one contact before taking it out. Since I was in a hurry, I set the radio on my pack and the notebook log on my thigh. The paddles were N0SA’s SOTA paddles. I got lucky and got one from his last run. I held it in my left hand. I sent a spot out and a few minutes later I sent QRL? On 7.057 MHz. I got a NO, they were waiting for me, I’ve never had that before. The wind was picking up and I had some difficulty hearing. As my hands got colder, my CW and handwriting suffered. I had a pretty good pile-up going and after 19 contacts I called QRT. There were still some calling, but Wx was not on my side.
I packed it up and headed down the mountain. By the time I got to the truck, it was starting to drizzle. I really didn’t mind the weather, I need to keep my hands warmer though.
The KX2. It was everything I had hoped it would be. I ran it 5 watts and it purred like a kitten. The quality of the received signal was great. I ran with the filter set to 1K Hz and it was fine, no overloading even with a pile-up. For SOTA, the radio is hard to beat. I like that I only have 3 cables to the radio, paddles, earbuds, and coax. Simple and easy.
Next time I will be sure to add some gloves to my pack. It was fun and I can’t wait to do the next one. If I knew retirement was going to be this much fun, I’d have done it a long time ago. 72 de Scott
I posted earlier that I was in a radio doldrum. Today I am slowly drifting back to fair skies and wind at my stern. My friend Thomas K4SWL recently posted on his blog a Field Kit Gallery showcasing operators’ various field kits: https://qrper.com/resources/field-radio-kits/ I thought I would post mine.
This is what I typically bring for a SOTA activation. I also have some general outdoor essentials like an iFAK, bug repellent, a compass, water, and of course snacks. For POTA, I am usually in my camper and bring a full-sized radio like my Elecraft K3/10. I also have an IC-705 which I like for those one-day POTA activations. The kit is pretty simple and gets the job done. Here is a list of components.
Also, I decided to take a break from everything else I have been doing and get on the air. I recently got my K3/10 back from the shop and thought I would give it a good workout at home so I wouldn’t have another calamity like I did a few months ago https://kk4z.com/2023/08/06/calamity-on-black-rock-mountain/. I set the radio up in the shack and started to make contacts. I had forgotten how far 10-watts CW can get you with a good antenna. At the home QTH, I run a 270′ OCF dipole with the apex up about 35′. I was hunting POTA activators and found I could work almost everyone I heard. I got as far north as Ontario, Canada, and as far west as TX, MO, and IA. This was still the morning and there weren’t many activators out yet. The K3/10 worked like a champ and purred like a kitten. Not hearing relays click during QSK CW is sublime. With the K3/10 cleared for field use, I have a couple of outings planned for it.
It feels good to be back in the saddle again. Absence makes the heart grow fonder, and after being away from amateur radio, even for a short while, I appreciate it all the more. 72 de Scott
It all started innocently enough. This was my monthly camping trip where I take a weekend and go play radio somewhere. It gives me a chance for some FunComm and in a roundabout way EmComm. This month it was Black Rock Mountain State Park. The highest state park in Georgia. I really like this park and try to come here a couple of times a year. It works really well in the summer months as it is usually cooler here than in other parks. There is also a SOTA summit within the park (W4G/NG-027). I thought I would try both a POTA and a SOTA activation with the bonus that any SOTA contacts can be counted for POTA.
Radios for this weekend were going to be my new to me Elecraft K3/10 and my Penntek TR-35 with an Elecraft T1 tuner for SOTA. It was going to be a nice QRP weekend. Everything was going well until I arrived at my campsite. I got the trailer set up and when I reached for the cooler to start lunch, the cooler wasn’t working. Sigh, I had to troubleshoot the cooler before I could do anything else. I found out it blew a fuse and I didn’t have any spares. Luckily, the stereo circuit uses the same size fuse so I swapped the bad fuse for a good one and all is well. Note to self: Buy spare fuses.
After lunch, I set the K3 up and got ready to activate the park. I had no transmit power on the K3. Not on SSB and not on CW zip, nada, none. I spent the next couple of hours trying to troubleshoot the radio. No luck. Prior to the trip, I did replace some of the filters and added the KAT3 autotuner. I am pretty sure I tested the radio after the work I did. The funny thing is when I hit the auto-tune button, I get 5 watts out to tune the antenna. For CW, when I try to send, the TX led lights, but no output. I monkeyed with it on Friday and Saturday but to no avail. May have to send it in for repair. But wait! there’s more.
Prior to turning in for the night, I managed to sit on my eyeglasses breaking both arms. while my distant vision is pretty good, I need glasses for close-up work. Luckily, I made a few contacts on the TR-35 before the incident. I only made a couple of contacts on Friday due to trying to fix the K3, and made about half a dozen more before turning in and breaking my eyeglasses.
Saturday morning, I planned to hike from my campsite to the summit; however, I needed glasses so I drove to the trailhead which is on the way to town where I can get some readers. I have a pair of sunglasses that have cheaters in them, but they aren’t for extended use. I did use them to make the SOTA activation before heading into town.
The hike from the trailhead to the Tennessee Rock Lookout was about half a mile or so. It was mostly uphill and what I would term a moderate climb.

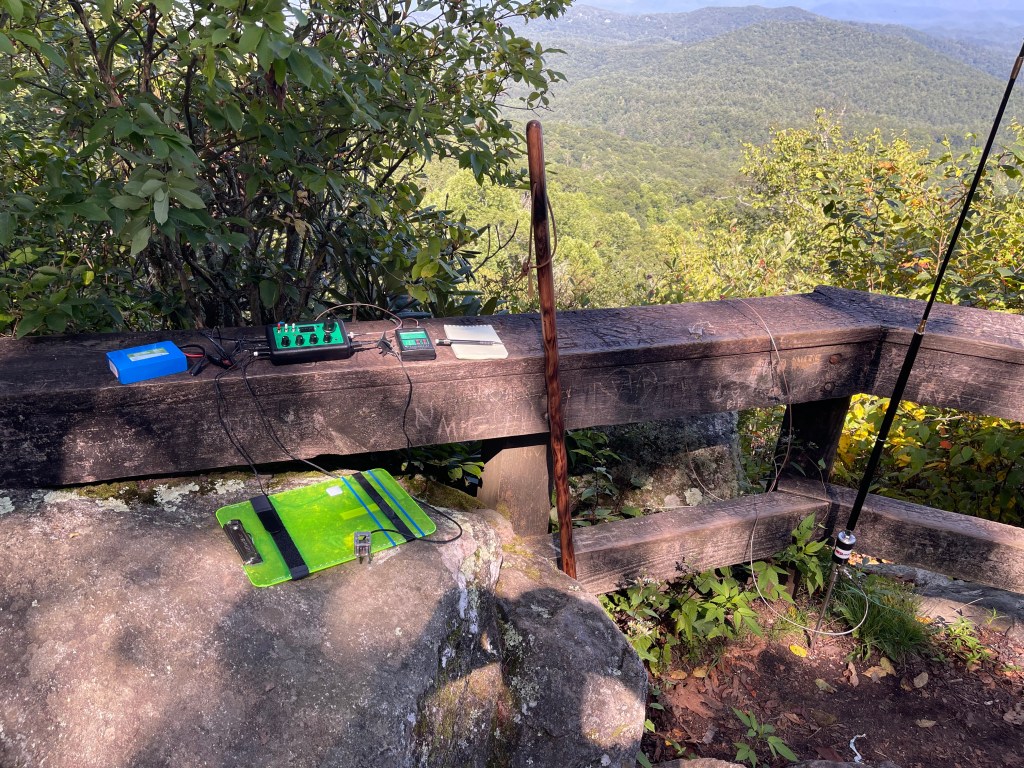

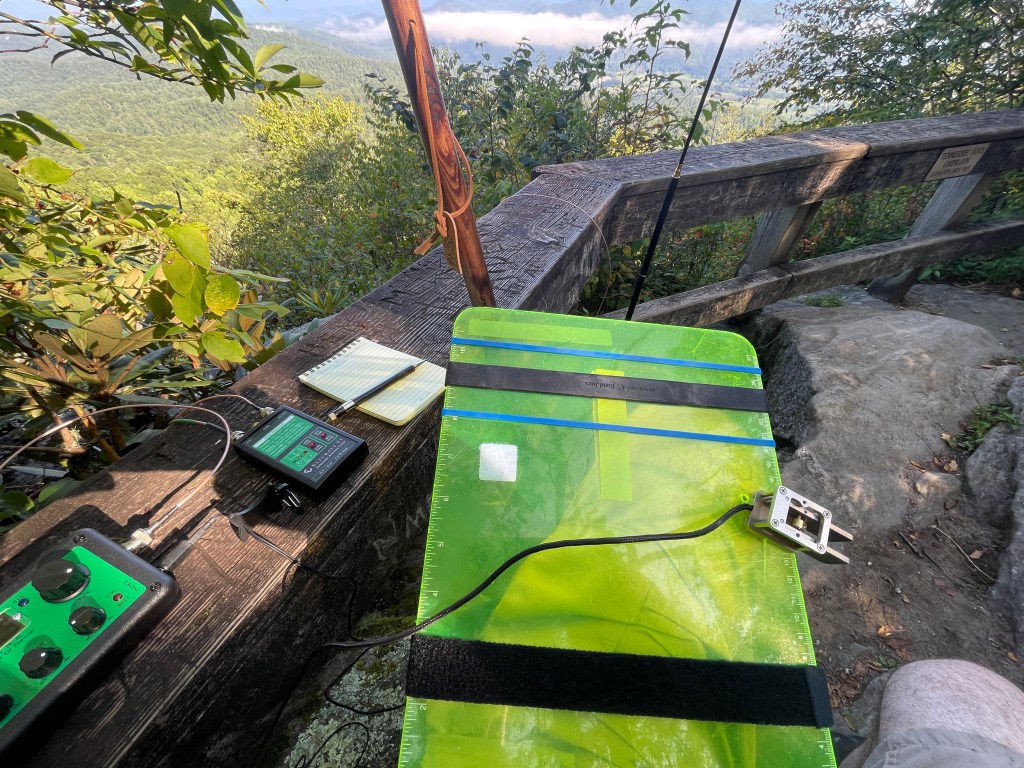

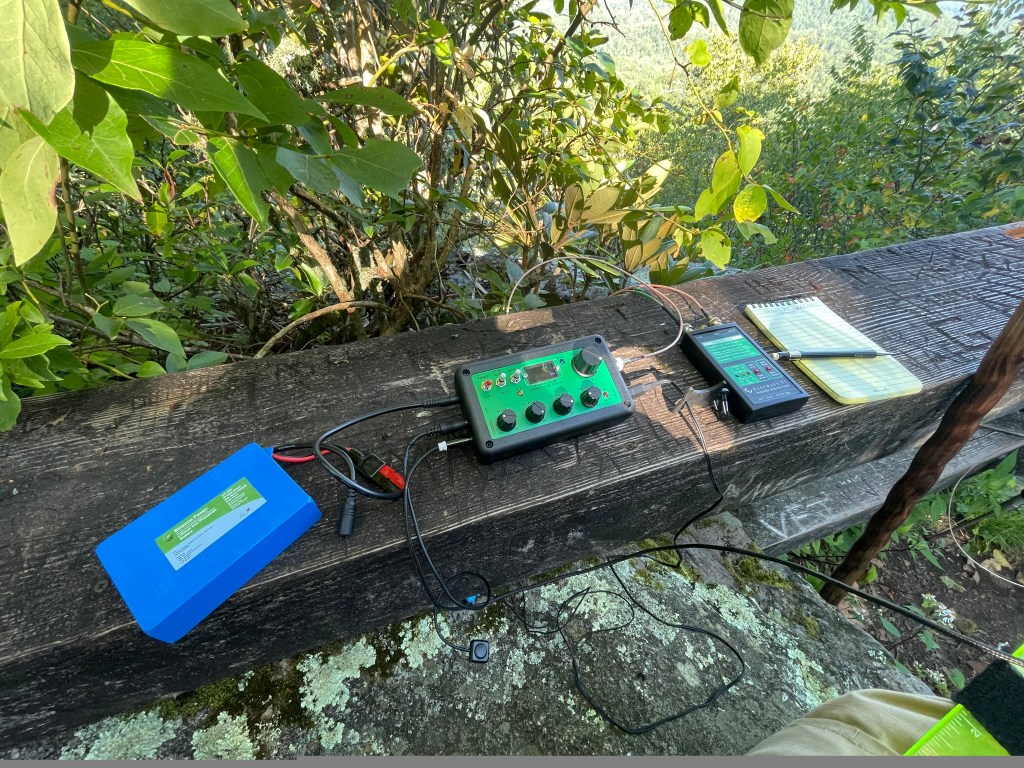

I set up a vertical antenna from my Frankentenna collection and the fence rail at the site provided a place for my radio, tuner, and battery. I used my flight deck for my N0SA paddles and iPhone. I am trying to get better at logging directly into Hamrs on my phone. Each time I do it I get better. Band conditions were not that good and it was a bit of a struggle to get contacts. Before I left the overlook I had 7 in the log enough for a SOTA activation and seal the deal for the POTA activation. It was a wonderful view of the valley from the overlook. It makes the huffing and puffing uphill worth it.
After coming down off the mountain, I drove into town and picked up a set of readers for my eyes and spare fuses for the camper. When I got back to base camp, I had lunch and tried to work on the K3 some more and yes, it looks like it is still going in for repair. The TR-35 did well for a little no-frills QRP radio. It only has 4 bands 40, 30, 20, and 17, so it’s not the best when the band conditions are up, down, and sideways. It is a great radio for SOTA though. Lightweight, 5 watts, and a decent narrow CW filter. I was glad to have it with me.

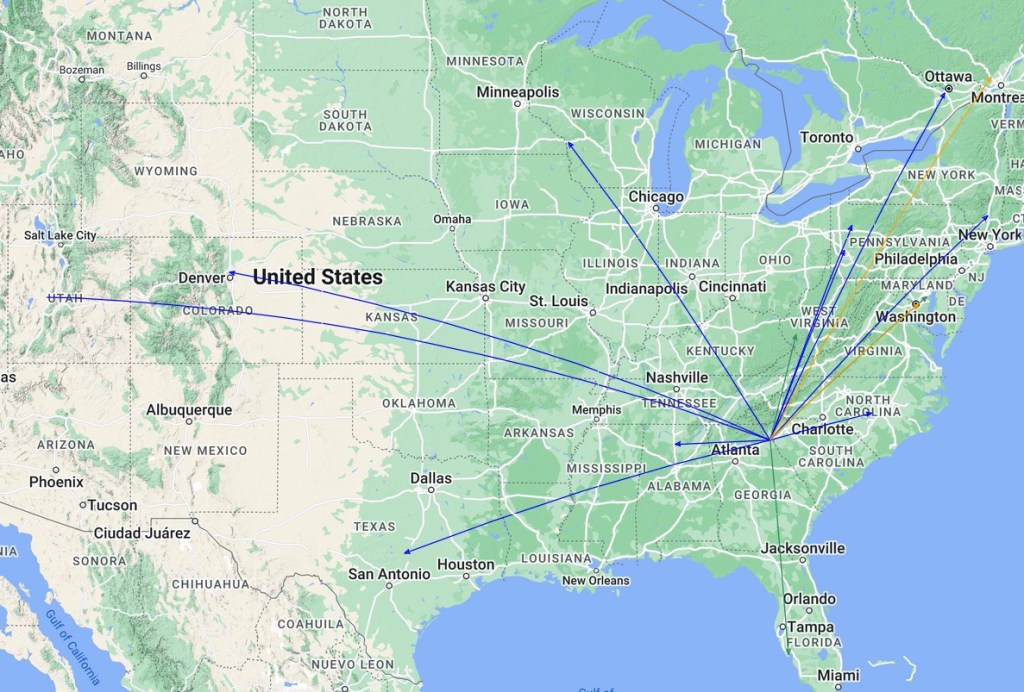

I made a total of 16 contacts. I would have liked to have made more, but given my “special” set of circumstances, I was able to complete an activation for SOTA and POTA. Below is a QSO Map courtesy of qsomaps.org and a YouTube Video of the activation. Note: The video did not escape the run of bad luck I had, audio is low.
Stuff happens and even though things didn’t work out the way I had planned, I was still able to make a SOTA and POTA activation. Plus I was able to check into my EmComm net on 40 meters. Every time I go to the field, I learn something new or I discover a weakness in my planning. For FunComm it’s not so bad, but for EmComm, where others may be depending on you, failure should not be an option. Practice makes perfect, or at least better. Till next time. 73 — Scott
On Saturday, June 10th, I decided to try a SOTA activation. I wanted a Saturday workout and test my gear, to see how I fair on a 6-point summit. I have eyes on doing a 10-pointer in the future. The summit reference is W4A/PT-002.
As I soon discovered, Dugger Mountain is no easy summit. From my starting point at a Forest Service Road where the trail crosses, it is a steady climb for almost 2 miles with an elevation increase of over 1,200 feet. After that, it is another quarter-mile climb bushwacking to the summit.
There was supposed to be a trail leading to the summit but I didn’t find one. It was probably overgrown with the summer foliage, I don’t think it would have helped much. Once I got to the top, I found a nice clearing with plenty of rocks to sit on. This time of year in the South is not a good time to sit on the ground, it is the middle of Chigger and Tick season.
The radio du jeur was my Penntek TR-35. It is a nice handy radio covering 4 bands: 40, 30, 20,17, my workhorse bands. The TR-35 is a 5-watt radio which can put out slightly more with a good battery. The radio has an excellent receiver and there are no hidden menus. You could say it is WYSIWYG, What You See Is What You Get. The radio was powered by a Bioenno 3 amp/hour battery that was rubber-banded under my homemade Flight Deck. The Flight Deck is an inverted plastic clipboard with some holes drilled for my N0SA paddles. There is enough room left for a Rite-in-the-Rain 4 x 6 notebook and/or my iPhone. I also have a large Velcro strap to secure it to my leg if need be.
The earbuds are made by Skullcandy and I like them a lot. If you look to the left of the clipboard, you will see a red dot. That is a momentary on push button connected to the key input on the radio. The radio comes with 2-inputs, one for paddles and one for a straight key. I use the button to tune the tuner.
The radio is connected to an Elecraft T-1 tuner and the coax is RG-316, The antenna is a home brew 41′ Random wire antenna without a counterpoise. I use a 15′ coax between the tuner and antenna for the counterpoise. It is made by Chameleon and has a choke balun at one end. When running a random wire antenna it is good practice to use a choke to prevent unwanted RF from getting into the radio. The antenna uses a homebrew 9:1 UnUn.
Many parts of the Talladega Nation Forest are isolated and cell service is spotty at best. For this reason, I carry a Garmin Messenger with me. It allows me to send SMS/Text messages as well as location information. Since I am sometimes doing a solo activation as an old guy, it gives me a safety net and gives comfort to my wife.
QRV. After a short break and set-up, I went on the air. I expected bands to be poor; however not as poor as the actual conditions. It was probably not the best day to be operating QRP. I had to work pretty hard to get the 4 that I did (enough for a SOTA activation). If I had a wish at that time, it would have been to have higher bands like 10 thru 15 which were supposedly open then.
The trip was fun, Dugger Mtn is off of the Pinholti Trail. It is a fairly well-maintained trail and was easy to navigate. The elevation changes there and back will put your boots and socks to the test. I am happy to report no blisters were indicated. This hike gave me an opportunity to test out my kit. It has been a while since I did any hiking with a pack. One thing I am going to do is lighten the load. I didn’t feel too overpacked, but I need to lose some weight in the pack. I will work on that Sunday. Here is a short YouTube of the trip. 73 — Scott
This weekend is the CQ WPX contest which means there is a lot of activity on the non-WARC bands. It was a great opportunity to take the TR-35 out for a test drive. As some of you know, I tend to do a running review that covers months instead of weeks or days. The same will go for the TR-35.
The first thing I learned is that the CW sidetone level is linked to the TX power. The higher the power, the louder the sidetone. When I adjusted it yesterday, I had the TX power turned way down. When I transmitted today at full power, the sidetone level was almost painful Plenty of volume available. It was a simple fix and I got it where I wanted it.
I fired up the rig using an Elecraft T-1 tuner into my 270′ OCF dipole. With the filter set to CW Wide, there was a cacophony of noise; a mix of static and CW while QSB brought the levels from a whisper to a mighty crescendo. The receiver took it all in stride, Having separate volume and RF gain controls made it easy to tame the beast. Listening to the noise was easy on the ears. Harsh but pleasant. Then I switched the filter to narrow and it was easy to isolate the desired signal. The filter is narrow, but not what some would call contest narrow. In a contest with signals often very close together, it is not unusual to set the CW filter to 150-300 Hz with sharp skirts. The TR-35 feels somewhere around 500 Hz. Could I contest with this radio? Yes, I think I could. The receiver never overloaded, and there was enough isolation that I could clearly hear most stations.
The ergonomics of the radio are excellent. There are 4 single-purpose knobs across the bottom: Keyer, TX Power, RF Gain, and Volume, all within easy reach. These are the controls you will be using the most and they are close at hand. The screen is small but easy to read. I haven’t tested it in direct sunlight yet, but you can reverse the colors to make it easier to read.
How did it play? Very well. I got on the air for a little while and contacted 5 POTA activators. Two of them were in with the contesters and I was able to easily pull them out and work them. I am impressed with this radio. I bought it to do SOTA and wanted a radio with a good receiver. I had read several reviews about the radio and it easily lives up to its reputation. The radio is fun! Small, light, and it is a good performer. Can’t wait to get it into the wild. 73 — Scott
KK4Z
