Hurricane Prep Update

Update. I got the cupholder for the desk. It’s important to have because I often use tall coffee cups or soda bottles in the field. They can tip over easily and make a mess. The cup holder prevents that. Here is a view of the table and chair inside the truck bed.

I have a couple of L-track cargo straps on order that will tie the desk to the bed floor. This is a pretty comfortable setup when I am not in the camper.

Speaking of the camper, the table fits nicely in there too. I will be taking the folding table I was using out and replacing it with this. The other table was too large. You will see the table in action on my next camping trip.

I received all of the pieces for the Chameleon TDL (Tactical Delta Loop). I plan on using it my next trip. What is nice about the TDL is it has a lower vertical height and will be safe to use around power lines.

Here in Georgia it can get pretty warm. At the time of this writing Fall is approaching and temperatures are moderating. I added a battery operated fan to my kit. I recently discovered Harbor Freight Hercules brand battery power tools. I needed a small trim router and decided to try Hercules. The router was $69 vs $219 (Dewalt at Home Depot). Since I no longer work out of a tool box, I felt the Hercules brand would have me covered. I really like that little router. I decided to try their fan at $25.

It runs off of 120 VAC and 20V Hercules batteries.

The Dewalt version runs about $125. I can buy 5 of these for one of Dewalt. The fan comes with a 5 year warranty and the batteries – 3 year. From what the folks at the store tell me, it’s no questions asked, any Harbor Freight Store, anywhere. I turned the fan on and it moves air pretty good. Certainly enough for inside the camper or the truck bed.

So far this year, the hurricane season has been quiet and we have only had glancing blows. I check my gear on a regular basis. I have been doing this enough that my annual improvements are incremental. I use my camping trips to check gear and my skill set. I feel that if a call came, I could be ready to go in about 4 hrs give or take.

For those that practice FunComm, good on you and for those that practice Fun, have more of it. Let’s hope for a quiet remainder of the season and that FunComm was only for fun this year. 73 de Scott

Hurricane Prep and a Little Project

About this time of year, I get a little antsy. This is the peak of the hurricane season. At this time, I tend to go over my gear and see of I can improve it. I practice Kaizen. It is the Japanese process of small continuous improvement. I learned this from my days in manufacturing. Each year I look at my gear and see what I can do to make it better.

My first improvement is with antennas. I have been a Chameleon Antenna user for years and I have been collecting bits and bobs as needed to make the antennas I think will do me the most good. This year I built their Tactical Delta Loop (CHA TDL). I already had their Micro Transformer and 1 – 17′ Stainless Steel Whip. All I needed was another 17′ Stainless Steel Whip and their Hub Kit. Sometimes when you deploy or even do a POTA activation, there my not be enough clearance (horizontal or vertical) to put the best antenna. The TDL gives me a good sized, free standing antenna that does not take up a lot of space. It is slightly directional giving me a little gain when operating at low power.

My next project was building a desk to fit in the back of my truck. I often activate parks for POTA alone and when nature calls, I do not like to leave my expensive radios on a park bench. I sketched a plan on a piece of paper and went to the shed to see what wood I had. I had enough scraps to build what I wanted to include a desktop I used in the cab of the truck. Part of the project was to try a new to me technology – pocket hole joinery. I stopped at my local Home Depot and picked up a Kreg jig. My first step was to cut the pieces to length and then assemble it.

I let it sit for a couple of hours and then took it out for the paint job. Bcause of the dissimilar woods I went with paint instead of stain.

I got creative and decided to camouflage it a little. After I let the paint dry I attached the top.

The hole in the foreground is for a coffee cup holder. I didn’t like the plastic ones I had so a quick look on Amazon netted me a stainless steel one. When operating portable it is very easy to knock over your drink onto your log, computer, or radio. Ask me how I know.

One last little bit is I added L-track connectors to the bottom of the desktop on each end.

I have L-track on my truck bed and using cargo straps with L-track connectors, it is easy for me to cinch the desk down to keep it from moving in the bed.

I have a low camping seat that easily allows me to slide under the table. The bottom of the desk top is approx. 17″ off of the ground. There is plenty of room for my legs. Now I can go to a park and all I need to do to secure my radios is flip up the tailgate and lock the camper top. The windows on the top slide open and have bug screens. I just have to add a small fan for the hot days, but for now, fall is approaching and cooler days are ahead. 73- de Scott

EmComm and FunComm

As I have said earlier, I practice EmComm to prepare for natural or man-made disasters when normal means of communication fail. FunComm is pretty self-explanatory, it’s things I do for fun. Fun things may include POTA, Field Days (winter and summer), supporting bike rides, and other club activities. I always like it when I can blend the two together. When I participate in POTA either for a weekend camp-out or a day activation, isn’t it kind of a practice run for an EmComm event? I use the same antennas and most of the time the same radios. My equipment gets a good exercise and I learn more about how they operate under different conditions.

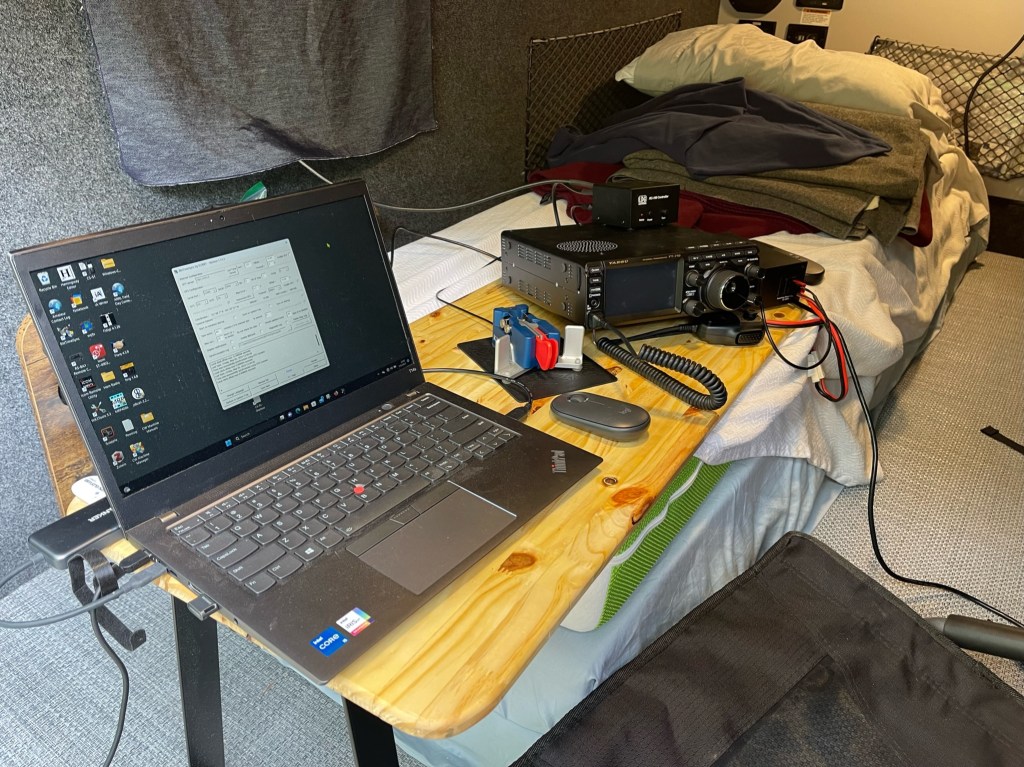

Recently, I bought a new camper, the old one wasn’t working well for the things I like to do. The new camper is so much better but not without its growing pains. I had to find a better way to use the radios inside the camper. To save words, here is a picture of what I have been using. It works okay but because it uses part of the bed, it made sleeping uncomfortable. After this last camp out when I woke up all sore and twisted feeling, I decided it was time to find a better way.

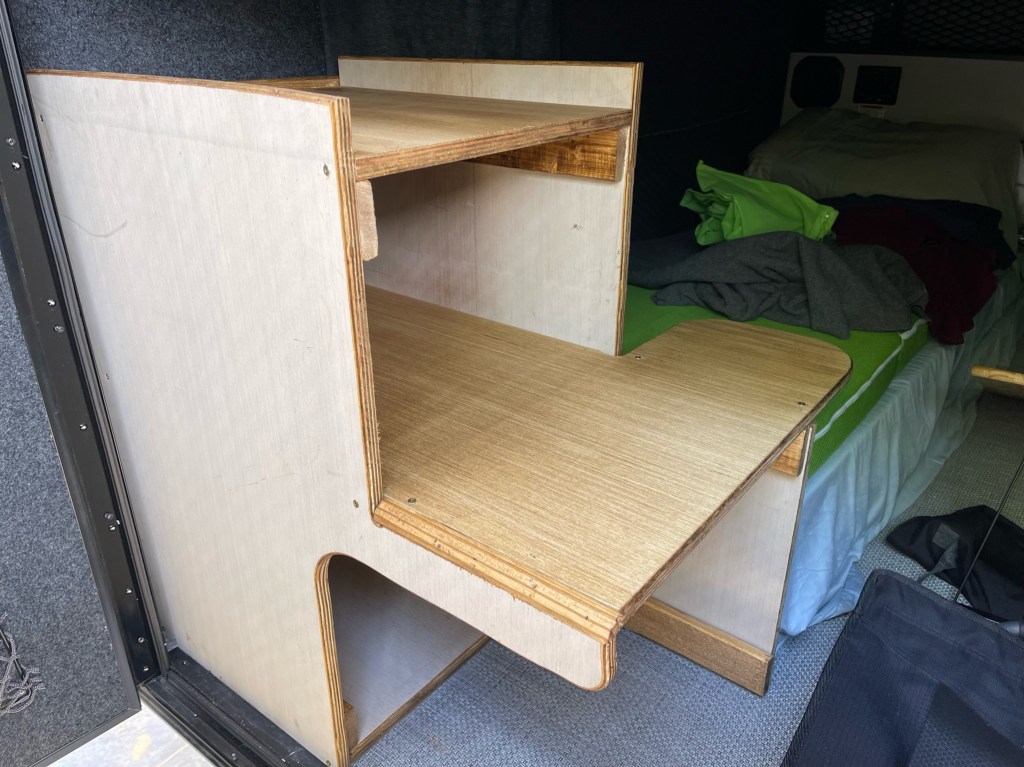

The new desk stacks the radio and power supply above the computer. This reduces the overhang on the mattress. The desk area for the paddle does overhang a little but sliding the desk to the right when not in use alleviates that.

The other thing I did was make a cut-out on the door side to make it easier to get my legs out. This works really well and does not impair the stability of the desk.

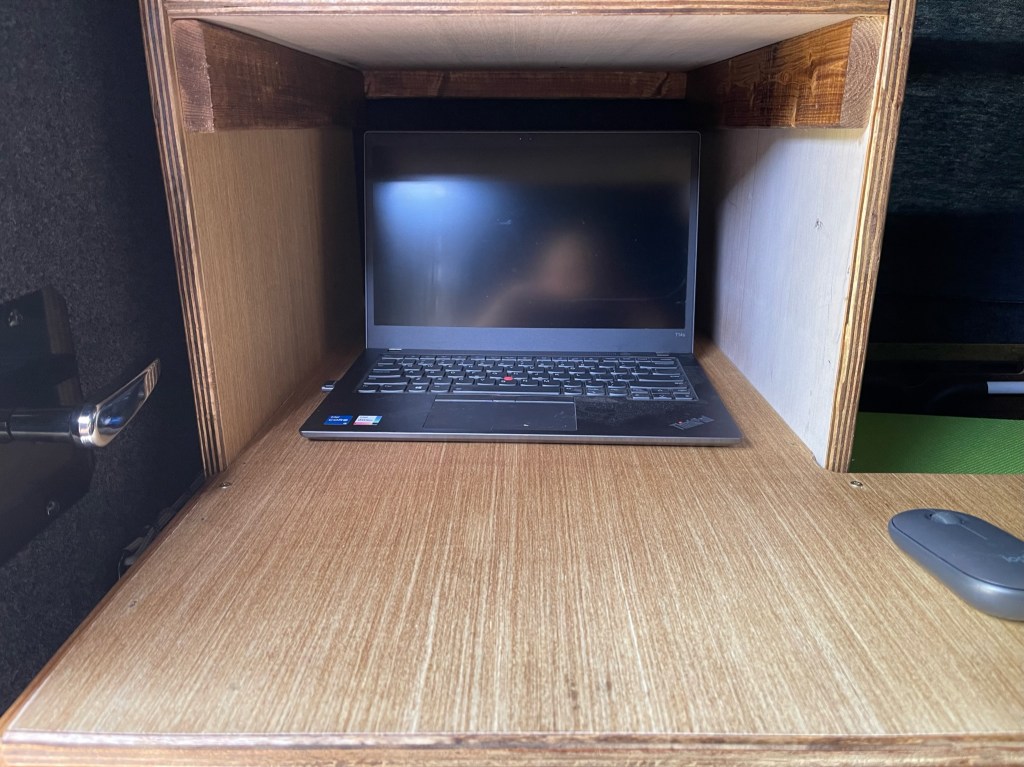

The last thing is the main desk is 30″ deep and the shelf is 20″ deep. This leaves plenty of room for the radios and enough room to slide the computer under the shelf if I need the desk space for something else.

Sitting behind the desk, the radio controls were easy to get to.

The desk is made from one sheet of 3/4″ plywood with (2) 1×3″x8″ boards. The stain was a can of Minwax I had laying around, I think it was Golden Oak.

Construction was simple, using hand tools found in most garages. It is not a piece of art, I don’t have the time. My philosophy is that “Perfection is the enemy of good enough”. The desk is glued, screwed, and nailed without any fancy joinery. If I waited until I had time to do a better job, the wood would still be at Lowe s.

I tried it out in the driveway and everything works and feels good. The radio is easy to get to and the computer is a little high but not uncomfortable. With the cut-out, it is easy to get in and out of the camper. The next test will be at the end of the month during my next camping trip. Hope to hear you out there. 73 – Scott

Necessity is the mother of invention

Plato’s Republic he said that *our need will be the real creator* or the proverb as we know it today *necessity is the mother of invention*. Recently, my friend Thomas K4SWL acquired a Yaesu FT-891. During his YouTube video, he expounded on how much fun he had with it. It did indeed look like fun. During this time I was pondering about doing more day activations instead of overnights. With the cost of everything still climbing, the need to conserve becomes apparent. I thought an FT-891 might really be a great radio for these day activations. Then reality set in.

I already have a number of projects I am working on and misc things like maybe having to replace my old 33′ push-up pole, it was not in the stars nor was there a twinkle in my wife’s eye when I mentioned it. In reality, the IC-7300 is a great radio and does everything I need to do especially in the field. I don’t need another radio, I have 3 100 watt radios and 3 QRP radios. I still wanted an easy setup for these one-day activations. I want to drive to a park, set up in a few minutes, operate, tear-down in a couple of minutes, and head for home or another park. I also wanted to make my day activations park ranger friendly. To me that means trying to be inconspicuous. I have two projects planned. The first is a desk for my truck. I am making a desk to sit over the center console and front passenger seat big enough to hold my IC-7300, a laptop and a CW paddle. My plan is to secure the desk to the truck and the radio to the desk. I also wanted to make this as cheaply as possible. I used stuff I had on the property such as a half sheet of plywood and some construction lumber. The only things I had to buy were some screws and eye-bolts, about 14 dollars worth.

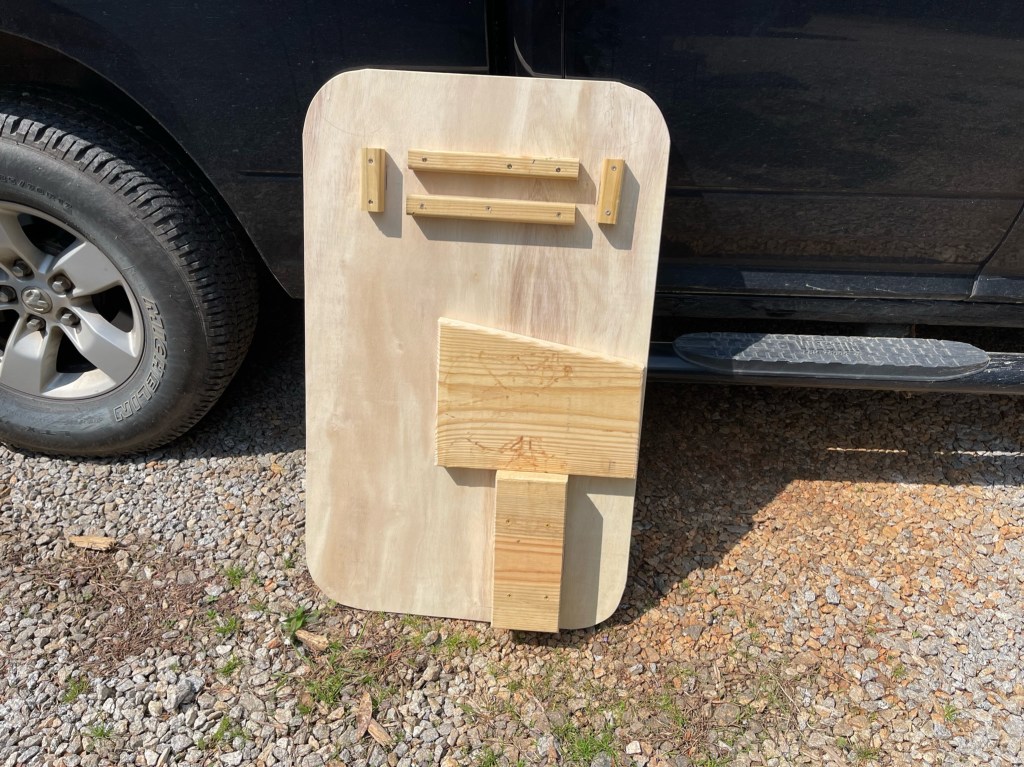

The plywood was cut to 24 x 38.5 inches. The length covers the center console and front seat while still allowing me to get to the heat/AC controls. I gave the corners a generous radius and I broke the edges with a router. On the underside, I used a 2 x 12 to make a spacer for the center console where the cup holder is and a leg for the other side over the passenger seat. The spacer is glued and screwed to the desktop but the leg is not attached. This is to make it easier to store. I made a socket for the leg using 2 x 2’s. It’s probably easier to look at a picture than me to try to explain. I added eye rings to the rear of the desk and use a bungee cord to secure the desk to the passenger seat. The only other thing I did, sprayed the top with polyurethane. Note. I am not a carpenter or cabinet maker. I use rough hand tools to get the job done and I am often making do with what’s on hand or what’s the cheapest way to do it.

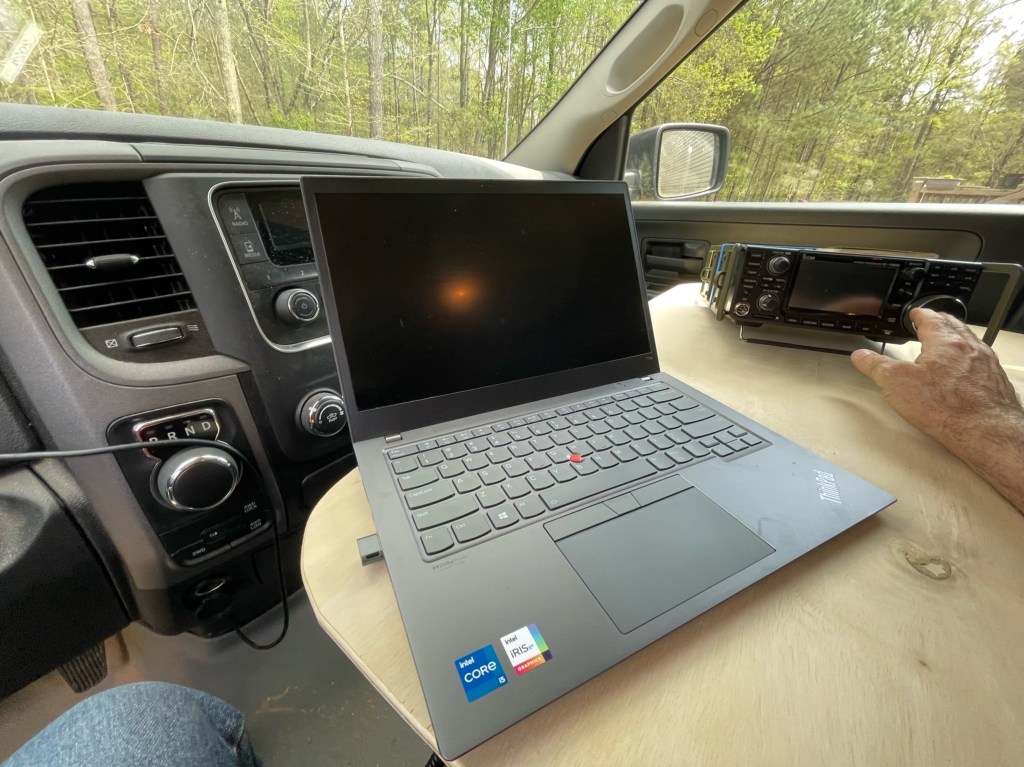

Putting the desk in the truck, everything feels good. I brought out my IC-7300 and laptop and placed them on the desktop. There appears to be plenty of room for both plus a set of paddles. I will use the desk a few times before I decide where the radio will end up and then figure out how to secure it. I am pleased with the result. While I thought having an FT-891 would be fun, in reality, the IC-7300 is better suited to my operating style.

The desk was comfortable to use and the truck can be driven when it is installed. Without the laptop, there is plenty of space for a notepad or an iPad. Now, if I could just find the time to get out and operate. 73 — Scott
